iSYS-4010 (RS485)
K-Band based motion detector with intelligent μC
decision unit. The unambiguous velocity range is
±250km/h. The sensor provides 3 programmable
output pins that offering a wide area of individual
configurations to be sure that the sensor fits to your
individual requirements. The programming can be
easily done by a GUI.
Features
- radar-based motion detector working in the 24GHz - ISM - Band
- Detection of moving objects in a distance from 0.3 to 150 (depending on RCS of detected object)
- Detection range configurable
- Unambiguous Velocity: ±250km/h
- Minimum Velocity: ± 0.8km/h
- Direction of motion discrimination
Mechanical Outlines
For mounting the module we recommend to use standard M3 screws.

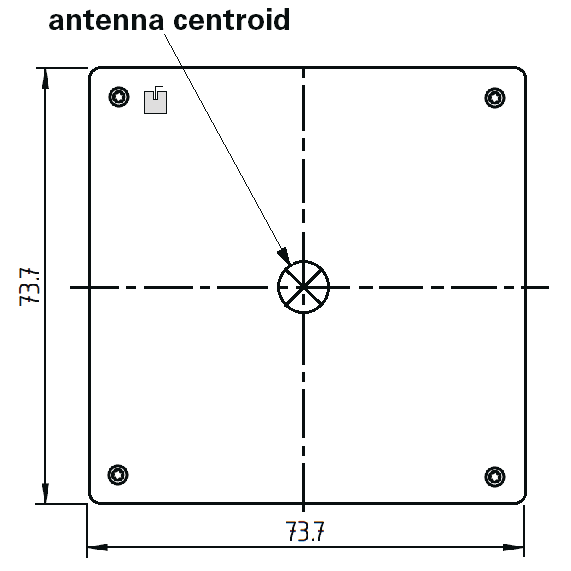

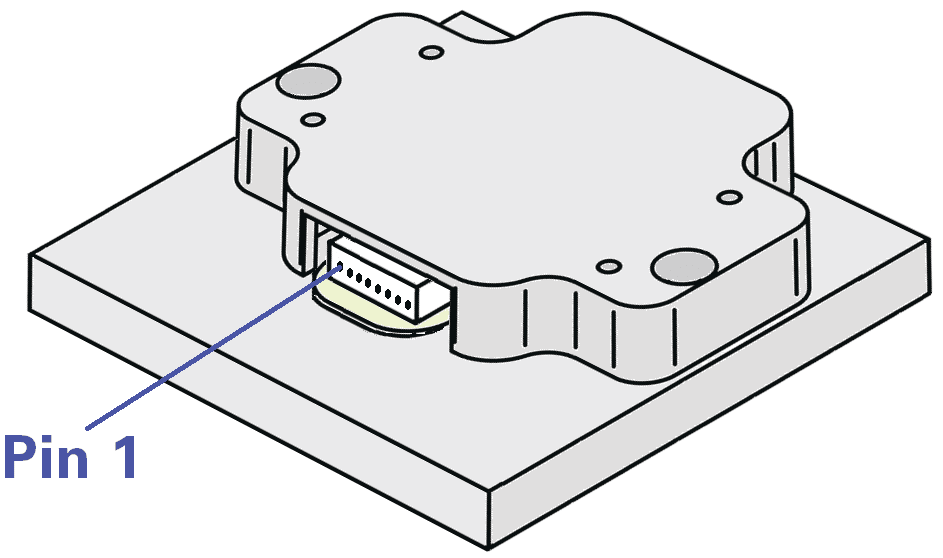

Top View

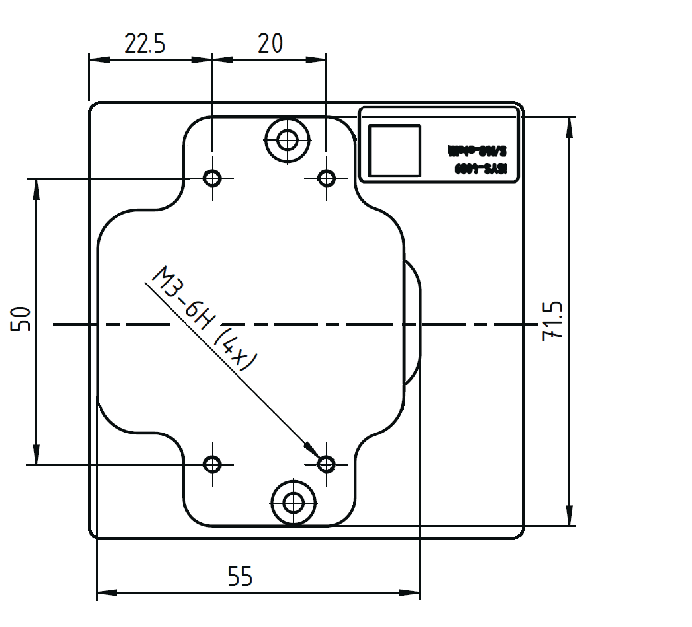

Bottom View

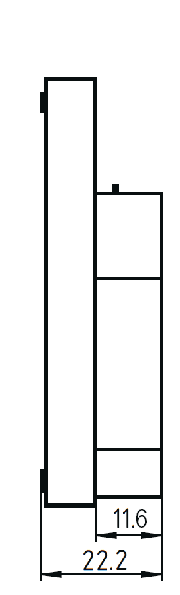

Side View
Parameters
The iSYS-4010 consist of a 24GHz Radarfrontend (RFE) with DSP-Board for measuring distance and radial velocity
of objects. The sensor offers 3 outputs that can be configured within the specified ranges:
speed area: 0.8....250km/h (radial velocity of detected object)
distance area: 0.3....150m (reachable distance depending on RCS of detected object)
The communication is be done by RS485 interface. Three output signals are available as PWM or as digital output
(open drain). The configuration of the sensor can be done by a GUI (Graphical User Interface).
Specifications
| PARAMETER |
CONDITIONS |
SYMBOL |
MIN |
TYP |
MAX |
UNITS |
|
Radar
|
| Transmit frequencies |
channel 1(EU) |
f1 |
|
24.190 |
|
GHz |
| |
channel 2(EU) |
f2 |
|
24.210 |
|
GHz |
| |
channel 3(US) |
f3 |
|
24.115 |
|
GHz |
| |
channel 4(US) |
f4 |
|
24.135 |
|
GHz |
| |
channel 5 (EU)avaliable from firmware v1.310 |
f5 |
|
24.195 |
|
GHz |
| |
channel 6(EU)avaliable from firmware v1.310 |
f6 |
|
24.215 |
|
GHz |
| |
channel 7(EU)avaliable from firmware v1.310 |
f7 |
|
24.120 |
|
GHz |
| |
channel 8(EU)avaliable from firmware v1.310 |
f8 |
|
24.140 |
|
GHz |
| Output power (EIRP) |
@25°C |
Pout |
|
|
20 |
dGm |
|
Sensors
|
| Detection distance |
depending on RCS of detected object |
dr |
0.3 |
|
150 |
m |
| Speed range |
|
vr |
±0.8 |
|
±250 |
km/h |
| Standard detection field |
compare with plot on page 3 |
horizontal |
|
8.5 |
|
° |
|
|
vertical |
|
|
|
° |
|
Power supply
|
| supply voltage |
|
VCC |
10 |
|
30 |
V |
| supply current |
@ 12V without digital out current |
ICC_12V |
|
135 |
150 |
mA |
| supply current |
@ 24V without digital out current |
ICC_12V |
|
76 |
85 |
mA |
|
Digital Output Current
|
| OUT1 |
open drain |
lout |
|
|
-400 |
mA |
| OUT2 |
open drain |
lout |
|
|
-400 |
mA |
| OUT3 |
open drain |
lout |
|
|
-400 |
mA |
| digital total current |
|
lout |
|
|
-800 |
mA |
|
Environment
|
| operating temperature |
|
TOP |
-25 |
|
+60 |
°C |
| storage temperature |
|
TSTG |
-25 |
|
+60 |
°C |
|
Mechanical Outlines
|
| outline dimensions |
compare to schematic on page 4 |
height
length
width
|
73.7
73.7
22.2
|
°C |
