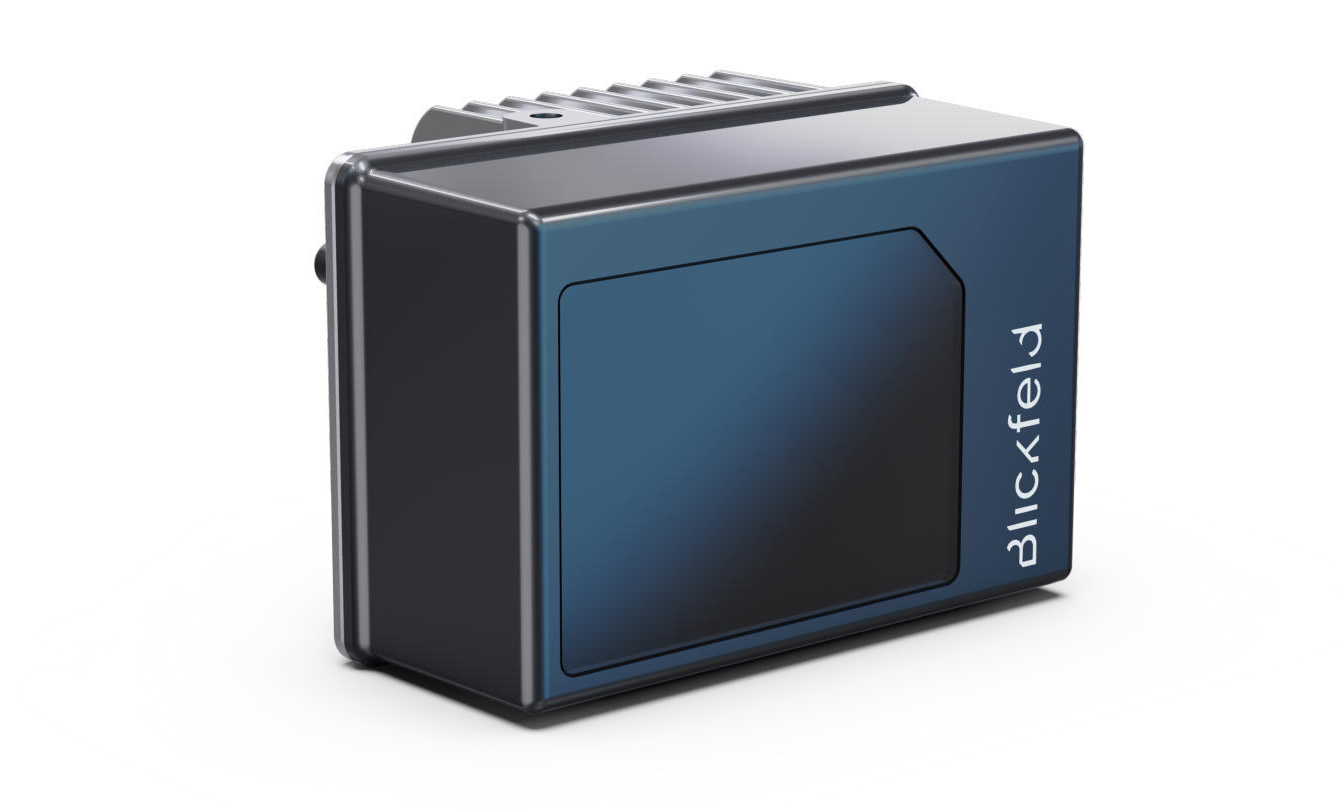

Qb2 Smart 3D LiDAR
Smart 3D LiDAR with on-device processing for intelligent and
customizable sensing solution
Qb2 is an integrated smart LiDAR
that allows
capturing and processing
of 3D data on a
single device. By incorporating Blickfeld’s
cutting-edge
technologies and research,
customers benefit from an intuitive
and costeffective system while
drastically simplifying
installation
and operation in various use cases
Applications
- Integrated web GUI.
- Object detection and tracking
- Zone management
- Blickfeld Flow
- Output interfaces
Key Features
- The software-defined 3D LiDAR sensor is versatile, featuring a flexibly adaptable field of view and configurable scan pattern. Designed to meet the requirements of various application scenarios, the Qb2 offers a wide field of view and high resolution and accuracy. With its proprietary solid-state technology, the sensor is maintenance-free and durable. The on-device processing and the WiFi connectivity make Qb2 a smart solution for automation across numerous industries.
Technical Parameters
| Performance |
| Technology |
3-dimensional laser ranging (LiDAR) with edge processing |
| Maximum field-of-view |
90° x 50° (horizontal x vertical) |
| Typ 1 - 100 . application range |
1 - 100 m |
| Coverage |
Installation height, tilt angle |
Coverage (width x depth) |
|
3 m / 9.8 ft, 30° |
15 x 12 m / 49.2 x 39.4 ft |
|
5 m / 16.4 ft, 30° |
28 x 22 m / 91.9 x 72.2 ft |
|
10 m / 32.8 ft, 35° |
35 x 28 m / 115 x 91.9 ft |
|
15 m / 49.2 ft, 40° |
41 m x 28 m / 135 x 91.9 ft |
|
20 m / 65.6 ft, 40° |
56 m x 45 m / 184 x 148 ft |
| Typical range precision(1 sigma) |
< +-2 cm |
| Frame rate |
< 1 – 50 Hz depending on con_gured scan pattern |
| Number of returns |
< 3 |
| Vertical resolution |
< 2 – 400 scan lines per frame c (user-configurable) |
| Horizontal resolution |
<0.25°, 0.5°, 0.75° (user-configurable) |
